10"(250mm) PCD
Grinding Plate - 12pcs 1/4 Round PCD + 6pcs Assisted Diamond
Segments

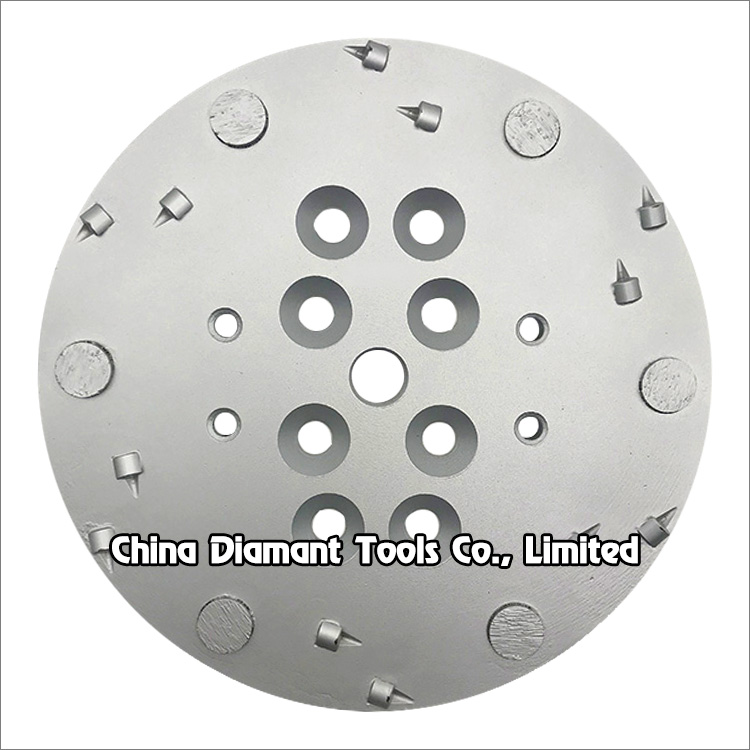

This 250mm PCD
grinding plate with multi-hole and 12pcs 1/4 round PCDs + 6pcs
assisted diamond segments design fits to most of the single
head grinder in the market, such as Blastrac/Trelawny grinders.
It is mainly used for
removing most types of coatings such as paint, varnish, glue, epoxy,
acrylic, screed residue, VCT mastic, black tar adhesive as well as
thick rubber materials on the concrete floor.
It is made from the highest quality poly crystalline diamonds.
The assisted segment prevents damage to the floor by controlling the
depth of the cuts from the PCDs.
It is ideal for the initial steps in concrete polishing procedures,
good to coarse grinding concrete surface quickly, make the surface
leveling, and achieve maximum square footage at minimum cost.
|
Code No. |
Diameter |
PCD Size |
PCD No. |
Segment Spec. |
Diamond Grit |
|
CD-DGD-01-PCD-02
|
10"(250mm) |
1/4 Round |
12 |
Ø20x5mm*6pcs |
#30 or
as per
demand |
The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
