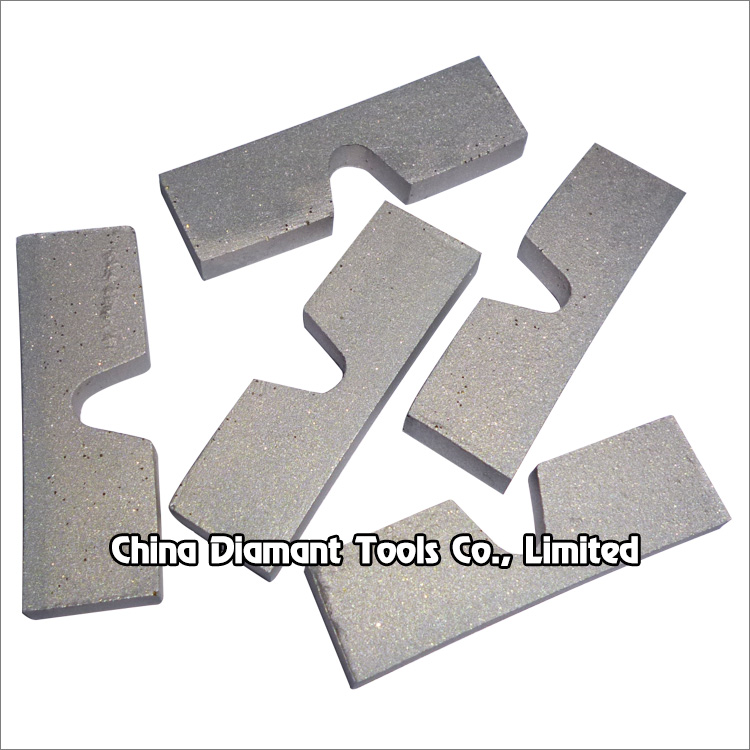

Diamond Segments of Wall Saw Blades - V Slot Shape



This 12mm height with V slot shape segments are widely used for replacement of used diamond segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.



They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.



V slot is benefit for fast coolant and speed cutting.



Welding method: laser welding or high frequency silver brazing.



Warning: no fire-welding.







Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

CD-DSWS-02-01

450mm(18")

40x4.6x12

24
CD-DSWS-02-02

500mm(20")

40x4.6x12

28
CD-DSWS-02-03

600mm(24")

40x4.6x12

34
CD-DSWS-02-04

650mm(26")

40x4.6x12

36
CD-DSWS-02-05

700mm(28")

40x4.6x12

40
CD-DSWS-02-06

750mm(30")

40x4.6x12

42
CD-DSWS-02-07

800mm(32")

40x4.6x12

46
CD-DSWS-02-08

900mm(36")

40x4.6x12

52
CD-DSWS-02-09

1000mm(40")

40x4.6x12

58
CD-DSWS-02-10

1050mm(42")

40x4.6x12

60
CD-DSWS-02-11 1100mm(44")

40x4.6x12

62
CD-DSWS-02-12

1200mm(48")

40x4.6x12

70





The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
