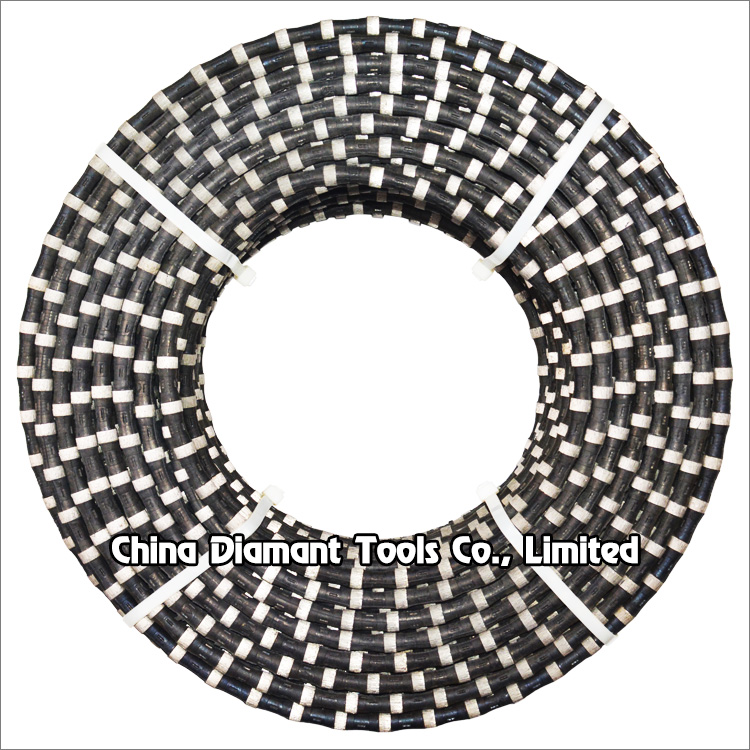

Diamond Wire Saw for Concrete Cutting

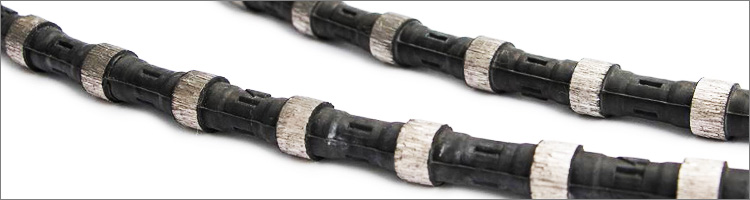

This rubber+spring coating diamond wire is widely used in concrete construction cutting, bridge and under-water construction cutting.

The advantages are：

· Huge and irregular construction cutting,
· Apply to cutting of most direction and part,
· High performance, safety and less pollution,
· Able to control the cutting process by remote-controlled operation.

We offer professional diamond wires with professional bond and high diamond concentration for cutting reinforced concrete, which are suitable for heavy demolition projects involving bridges, dams, and thick of concrete structures. They are ideal for demolition wore within inhabited structures as they create very little dust, noise, and vibration, and they have excellent performances in term of cutting speed and service life.

Code No.	Diameter	Fixing Type	Beads No. pcs/M	Material Cutting	Linear Speed (m/s)	Cutting Speed (mm/min)	Wire Life(㎡/m)
CD-DWSC11.5	Ф11.5mm	Rubber+Spring	40pcs	Various Concrete	20-22	0.8-2.0	1.0-2.5
CD-DWSC11.0	Ф11.0mm	Rubber+Spring	40pcs
CD-DWSC10.5	Ф10.5mm	Rubber+Spring	40pcs

The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.

We also can:

Change the diameter according to customer's request.
Offer diamond beads with different hardness (HRB95-105).
Offer diamond beads with different length.
We develop special rubber and the technology of vulcanization, make sure the diamond wire can work in most hard-working conditions.

Please inform the following if you would like to place order:

Code No. of Diamond Wire

Diameter of the Wire (11.5mm, 11mm or 10.5mm)

Wire Type (Rubber + Spring type)

Concrete Type (Normal Concrete, Reinforced or Steel/Metal Structure)

Order Quantity (How many Meters)

Wire Saw Machine Power (How many KW or HP of the motor)

Expected cutting speed and life(M2)

Expected shipping date
