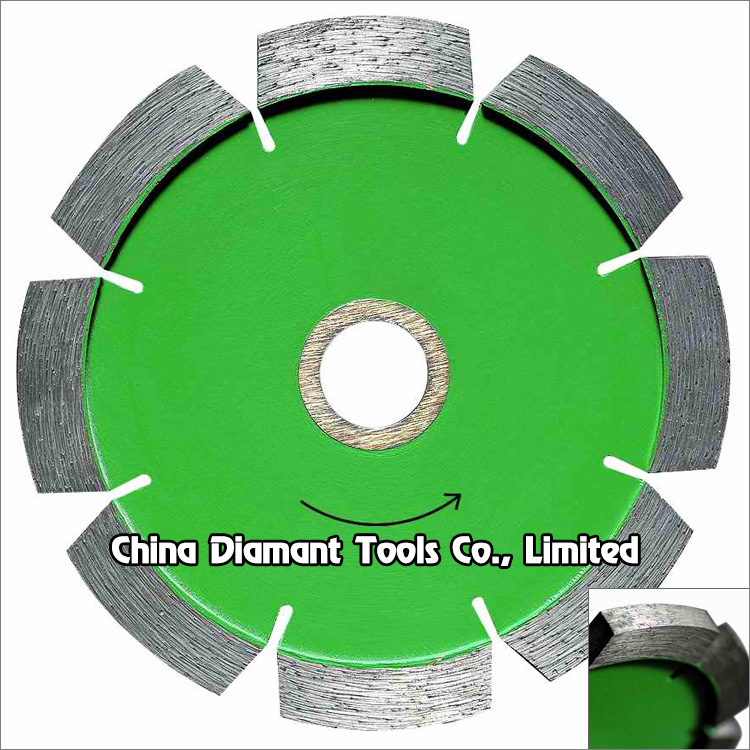

Tuck Point Saw Blades - Normal Flat Segments
|
Diamond tuck point saw
blade is composed up of heavy-duty steel core and has powder
metal/diamond dust segments, providing dependable performance for
fast cutting speeds and good blade life.
They are thicker than diamond saw blades due to the purpose they
serve. They are suitable for making gaps, mortar and concrete
removal, and they allow you to prep stone, granite, marble, concrete
brick, block and pavers for new joints and brick cleaning.
Our tuck point blade with thicker normal flat segments employ a high
grade and concentration of diamond to ensure longer life and better
cutting speed.
Hot press sintered, or laser welded.
Dry or wet use.
Used with angle grinders, tuck
pointers. |
|
 |
|
Code No. |
Diameter |
Segment Width
(mm) |
Segment
Height
(mm) |
Bore |
Producing Tech. |
|
CD-DTPB-01-01 |
105mm(4") |
6.4 |
10 |
15.88mm(5/8")
22.23mm(7/8") |
Hot press
sintered
or
Laser
welded |
|
CD-DTPB-01-02 |
115mm(4.5") |
6.4 |
10 |
|
CD-DTPB-01-03 |
125mm(5") |
6.4 |
10 |
|
CD-DTPB-01-04 |
150mm(6") |
6.4 |
10 |
|
CD-DTPB-01-05 |
180mm(7") |
6.4 |
10 |
|
CD-DTPB-01-06 |
200mm(8") |
6.4 |
10 |
|
CD-DTPB-01-07 |
230mm(9") |
6.4 |
10 |
The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
| Warm Prompt: |
For your personal
protection, to take good care of your
eyes/ears/face/hands/body/etc., before you start working we
recommend that you wear safety glasses, dust aspirators,
welding gloves, safety shoes, and other appropriate
equipment.
|
