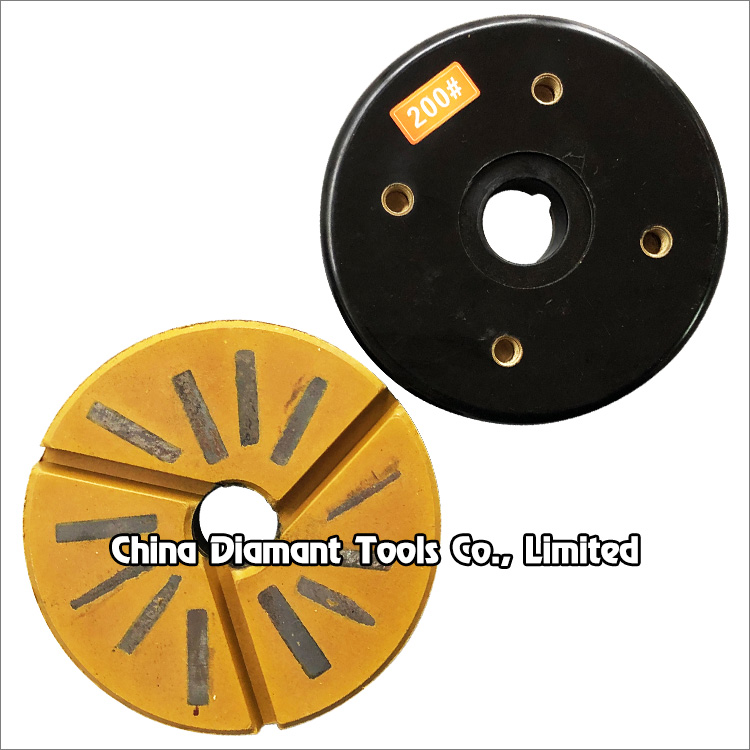

Polishing Discs for Granite Marble various Stones
|
Metal Bond & Resin Filled
Metal bond & resin filled diamond polishing discs for rough-polishing granite
marble various stone slab surface in automatic grinding machines or
single head polishing machines.
Wet use only with sufficient water.
Characteristic : high polishing efficiency, strong abrasion strength, it
can improve the productivity and slab quality, besides making the more
calm and elastic during working.
|
|
 |
|
Code No. |
Diameter |
Segment Size |
Grit No. |
Thickness |
Hole |
Back |
|
CD-DPD-02-100 |
100mm(4") |
40*8*10mm |
#50, #100, #200, #400 |
23mm |
25mm |
plastic back with 4 M8 screw holes |
|
CD-DPD-02-125 |
125mm(5") |
|
CD-DPD-02-150 |
150mm(6") |
|
CD-DPD-02-200 |
200mm(8") |
Suggested Disc
Abrasives Sequence for Granite Line Polishing Machine
| Heads |
12 Heads |
16 Heads |
20 Heads |
| Head 1 |
#50-Metal Disc |
#50-Metal Disc |
#50-Metal Disc |
| Head 2 |
#50 |
#50 |
#50 |
| Head 3 |
#200 |
#200 |
#100 |
| Head 4 |
#200 |
#200 |
#100 |
| Head 5 |
#400 |
#200 |
#200 |
| Head 6 |
#500-Resin Disc |
#400 |
#200 |
| Head 7 |
#500 |
#400 |
#200 |
| Head 8 |
#800 |
#500-Resin Disc |
#400 |
| Head 9 |
#1500 |
#500 |
#400 |
| Head 10 |
Buff-Polishing Buff |
#800 |
#500-Resin Disc |
| Head 11 |
Buff |
#800 |
#500 |
| Head 12 |
Buff |
#1500 |
#800 |
| Head 13 |
|
#1500 |
#800 |
| Head 14 |
|
Buff-Polishing Buff |
#1500 |
| Head 15 |
|
Buff |
#1500 |
| Head 16 |
|
Buff |
#3000 |
| Head 17 |
|
|
Buff-Polishing Buff |
| Head 18 |
|
|
Buff |
| Head 19 |
|
|
Buff |
| Head 20 |
|
|
Buff |
The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
