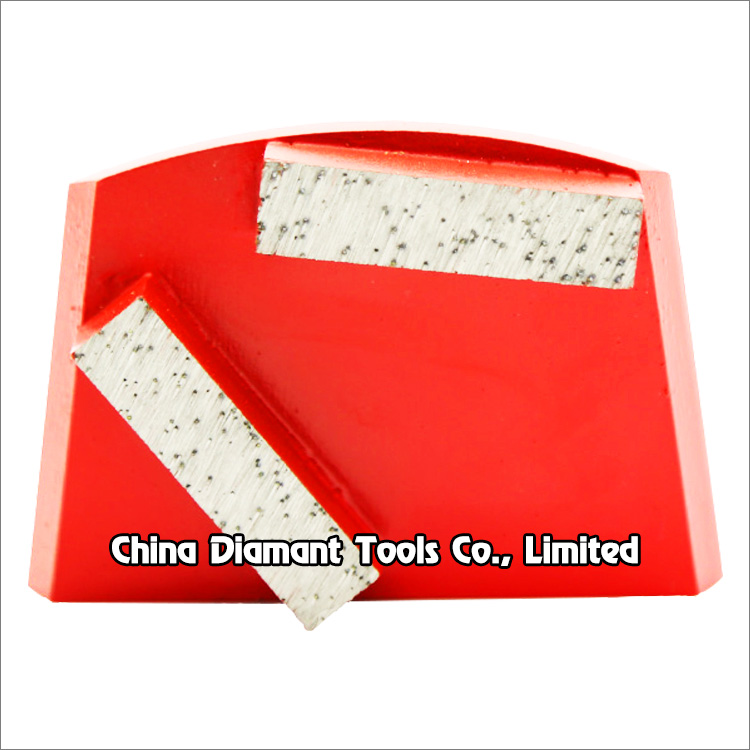

Diamond grinding pad with 1 or 2pcs metal bond bar segments for Lavina floor grinders, suitable for general (concrete, terrazzo, stone) floor grinding use, it is often used for rough leveling and grinding of concrete/terrazzo/stone floor, such as underground parking lot, factory floor, etc., to remove the attachment on its surface.

Metal bond diamond segment has high strength, excellent wear resistance, and a low friction coefficient, it also has high grinding efficiency and low grinding force generates less heat in the grinding process.

Lavina diamond pads with quick lock plate provide convenient and economical way for concrete floor preparation and grinding. The diamond grinding pad is held into the right position by a combination dovetail-magnet system, which prevents the grinding pad from slipping during the grinding or preparation work. Quick change diamond grinding pad requires quick change plates for attachment. The plates can be reusable and make the system more economical than traditional welded-button plates.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).

Lavian Quick Lock Plate

Code No.

Segment No.

Segment Size

Grit No.

Connection

CD-DGP-LAV-01-1

1

40x10x10mm

Soft

Medium

Hard

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

Lavina quick lock plate

CD-DGP-LAV-01-2

2
