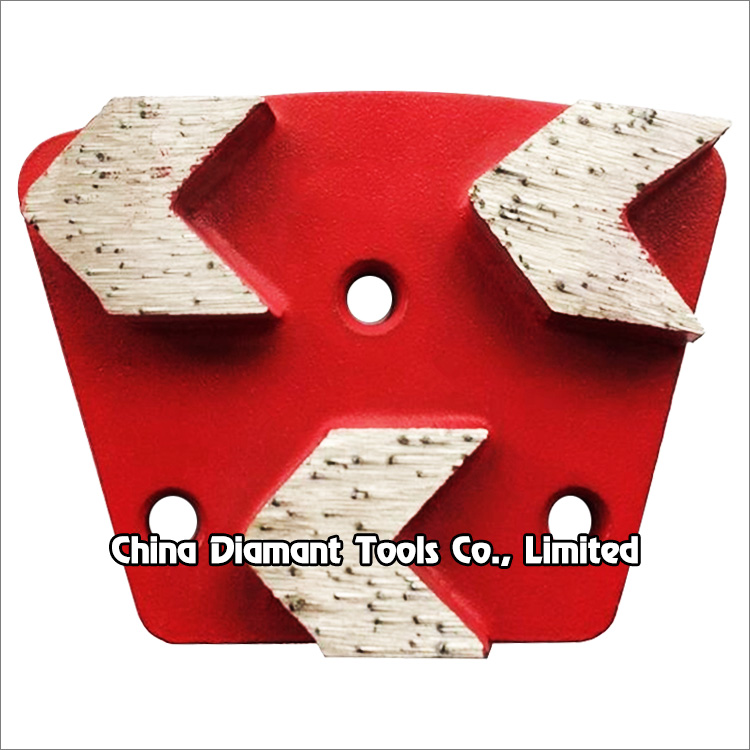

Trapezoid diamond grinding pad with arrow segments, which is one of the floor preparation tools used on floor grinders, designed for floor grinding (leveling uneven spots or joints) and quick removing thin epoxy coatings, glue or other materials on floor surface, it is extremely aggressive leaving and deep to medium scratch pattern, take the floor from coarsely structured surface to pre-polishing.

It's easy to deal with various rough surface, smooth and unbroken edges, low grinding resistance and high efficiency.

Arrow shape segments gives sharp grinding speed compared to other normal shape segments.

Arrow segment No.: 1pc, 2pcs, or 3pcs.

Bond: hard, medium, soft.

Application: concrete, terrazzo grinding and renovating.

1pc segment

2pcs segments

Code No.

Segment No.

Segment Height

Grit No.

Base Specification

CD-TR-MET-03-1

1

10mm

Soft

Medium

Hard

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

3 holes

(M6/M8/bare holes)

or

as per demand

CD-TR-MET-03-2

2

CD-TR-MET-03-3

3
