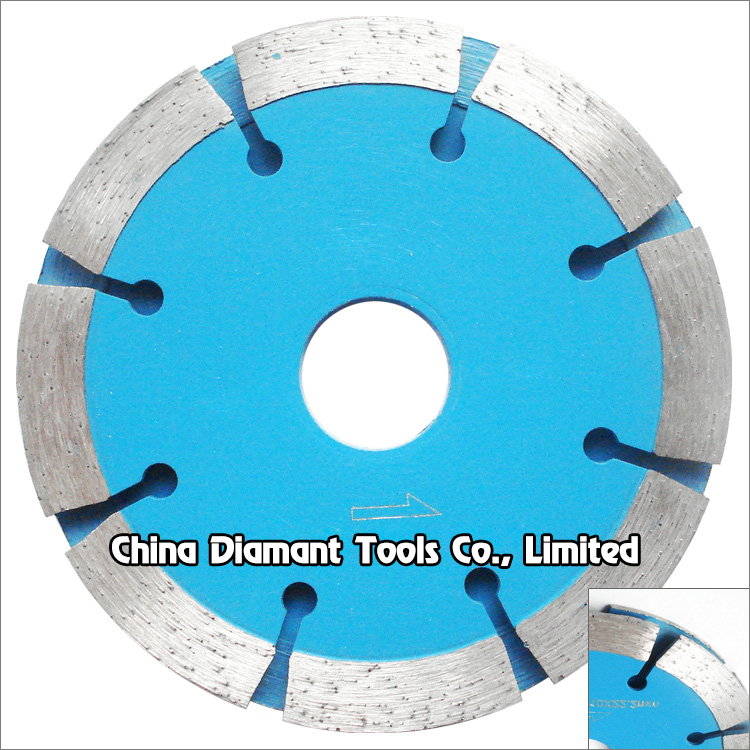

Diamond Tuck Point Saw Blades - Sandwich(Double pcs Assembled)

Diamond tuck point blades are installed on angle grinders for grooving, chasing, cutting, repairing and widening cracks in concrete, brick, block, stone, asphalt, etc. for foundation repair, driveway repair, concrete repair, and general crack repair.

Compare with traditional diamond tuck point blades, sandwiched diamond tuck point blades provide more aggressive and efficient cuts, they are mostly used to remove mortar joints.

Hot sintered, or laser welded.

Dry or wet use.

Used with angle grinders, tuck pointers.

Code No.	Diameter	Segment Width (mm)	Segment Height (mm)	Bore	Producing Tech.
CD-DTPB-03-01	105mm(4")	1.8	10	15.88mm(5/8") 22.23mm(7/8")	Hot press sintered or Laser welded
CD-DTPB-03-02	115mm(4.5")	1.8	10
CD-DTPB-03-03	125mm(5")	2.0	10
CD-DTPB-03-04	150mm(6")	2.2	10
CD-DTPB-03-05	180mm(7")	2.2	10
CD-DTPB-03-06	200mm(8")	2.4	10
CD-DTPB-03-07	230mm(9")	2.6	10

The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.

Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
