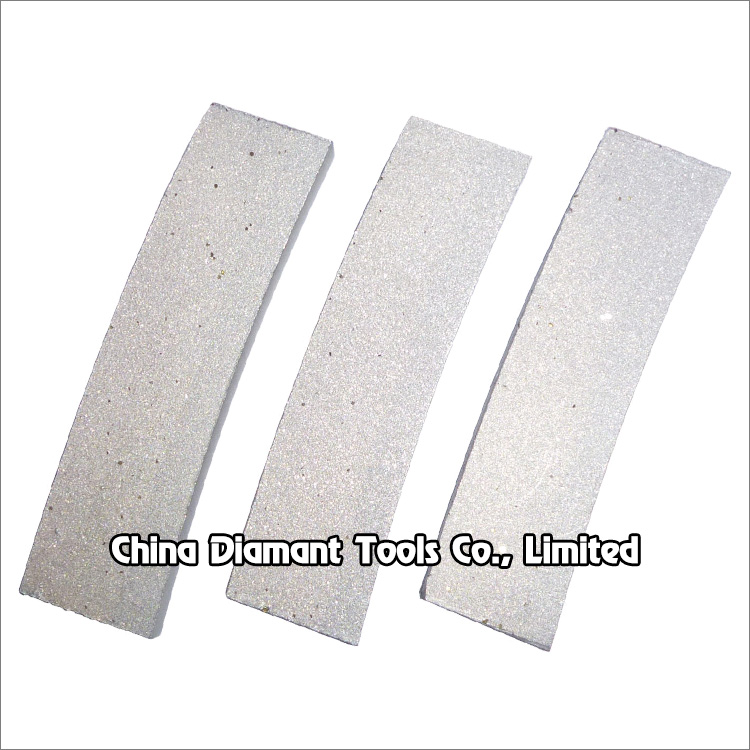

Diamond Segments of Wall Saw Blades - Normal Flat Shape



This normal flat shape segments are widely used for replacement of used diamond segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.



They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.



Segments length: 20 or 40mm



Segments height: 10 or 12mm



Welding method: laser welding or high frequency silver brazing.



Warning: no fire-welding.







Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

CD-DSWS-01-01

450mm(18")

20/40x4.6x10/12

24
CD-DSWS-01-02

500mm(20")

20/40x4.6x10/12

28
CD-DSWS-01-03

600mm(24")

20/40x4.6x10/12

34
CD-DSWS-01-04

650mm(26")

20/40x4.6x10/12

36
CD-DSWS-01-05

700mm(28")

20/40x4.6x10/12

40
CD-DSWS-01-06

750mm(30")

20/40x4.6x10/12

42
CD-DSWS-01-07

800mm(32")

20/40x4.6x10/12

46
CD-DSWS-01-08

900mm(36")

20/40x4.6x10/12

52
CD-DSWS-01-09

1000mm(40")

20/40x4.6x10/12

58
CD-DSWS-01-10

1050mm(42")

20/40x4.6x10/12

60
CD-DSWS-01-11 1100mm(44")

20/40x4.6x10/12

62
CD-DSWS-01-12

1200mm(48")

20/40x4.6x10/12

70





The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
