Diamond

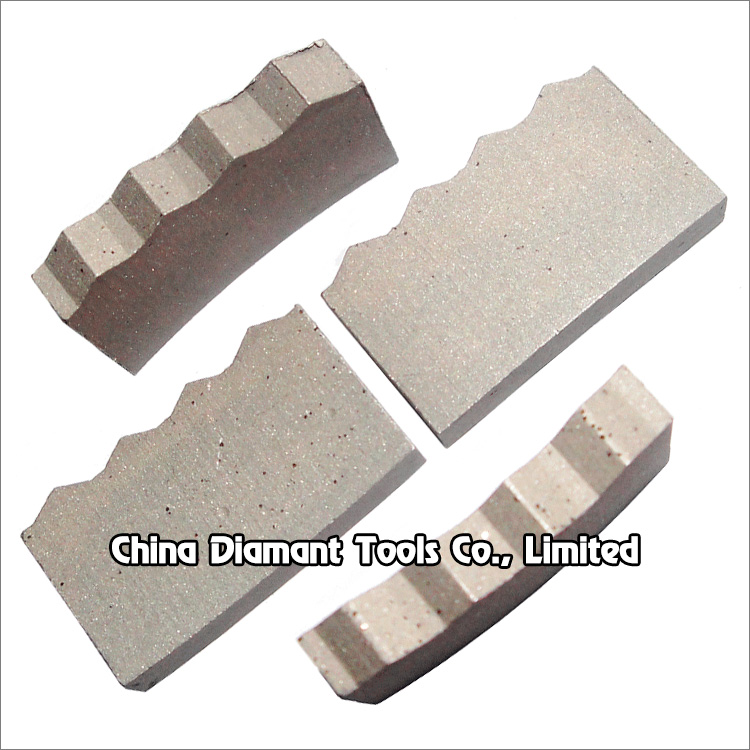

Segments of Drill Bits - Wave Top Shape
Diamond
segments of drill bits with wave top shape diameter 57mm-356mm provide
smooth and fast drilling for various materials.
Wave top is benefit for
fast initial drilling and quick segments opening.
Applications:
Widely used for replacement of used segments on diamond drill bits for
drilling cured concrete, green concrete, reinforced concrete, brick,
block, masonry, stone, or other abrasive materials, such as air
conditioner installation, pipeline, high way, road signs, bridges,
airports for high speed drilling.
Different bonds
are available for different applications.
Welding method:
silver or laser welding.
Wet use with sufficient water.
|
Code No. |
Diameter |
Segment Size |
Segment No. |
|
CD-DSDB-08-57 |
2.25"(57mm) |
24x3.5x13 |
5 |
|
CD-DSDB-08-63 |
2.50"(63mm) |
24x3.5x13 |
6 |
|
CD-DSDB-08-70 |
2.75"(70mm) |
24x3.5x13 |
7 |
|
CD-DSDB-08-76 |
3"(76mm) |
24x3.5x13 |
8 |
|
CD-DSDB-08-82 |
3.25"(82mm) |
24x3.5x13 |
9 |
|
CD-DSDB-08-89 |
3.50"(89mm) |
24x3.5x13 |
10 |
|
CD-DSDB-08-102 |
4"(102mm) |
24x3.5x13 |
10 |
|
CD-DSDB-08-108 |
4.25"(108mm) |
24x3.5x13 |
11 |
|
CD-DSDB-08-114 |
4.50"(114mm) |
24x3.5x13 |
11 |
|
CD-DSDB-08-120 |
4.75"(120mm) |
24x4.0x13 |
11 |
|
CD-DSDB-08-127 |
5"(127mm) |
24x4.0x13 |
11 |
|
CD-DSDB-08-140 |
5.5"(140mm) |
24x4.0x13 |
12 |
|
CD-DSDB-08-146 |
5.75"(146mm) |
24x4.0x13 |
13 |
|
CD-DSDB-08-152 |
6"(152mm) |
24x4.0x13 |
13 |
|
CD-DSDB-08-159 |
6.25"(159mm) |
24x4.0x13 |
14 |
|
CD-DSDB-08-165 |
6.5"(165mm) |
24x4.0x13 |
15 |
|
CD-DSDB-08-178 |
7"(178mm) |
24x4.0x13 |
16 |
|
CD-DSDB-08-203 |
8"(203mm) |
24x4.5x13 |
18 |
|
CD-DSDB-08-229 |
9"(229mm) |
24x4.5x13 |
20 |
|
CD-DSDB-08-254 |
10"(254mm) |
24x4.5x13 |
23 |
|
CD-DSDB-08-180 |
11"(280mm) |
24x5.0x13 |
25 |
|
CD-DSDB-08-305 |
12"(305mm) |
24x5.0x13 |
27 |
|
CD-DSDB-08-330 |
13"(330mm) |
24x5.5x13 |
30 |
|
CD-DSDB-08-356 |
14"(356mm) |
24x5.5x13 |
32 |
The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
