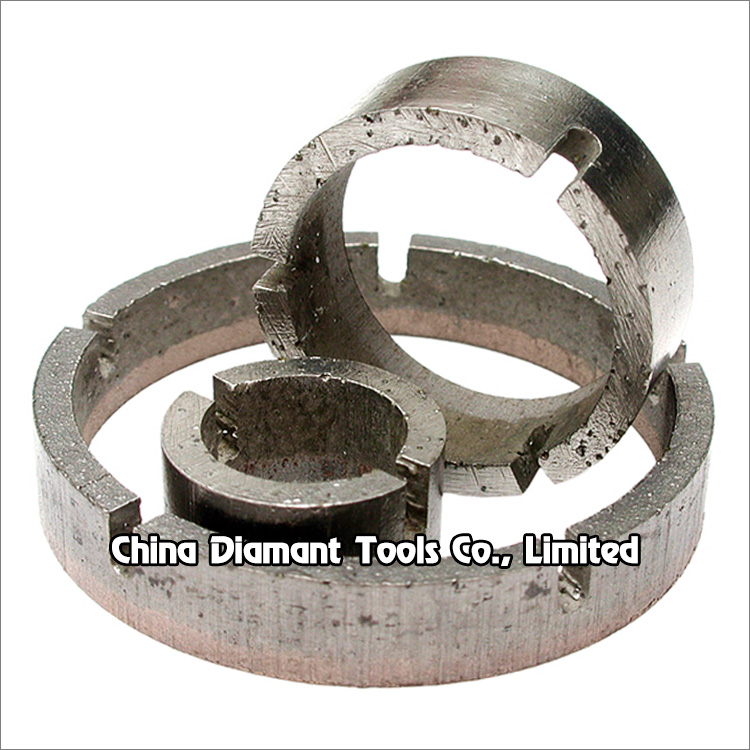

Diamond Segments of Drill Bits - Crown(Ring) Shape



Diamond segments of drill bits with crown shape of 14mm-52mm provide smooth drilling and avoid segments loosing.



High concentration of diamond offers long drilling life.



Applications: Reinforced concrete with hard to soft aggregates, green concrete, stone, ceramic or other abrasive material.



Welding method: silver welding.



Wet use with sufficient water.







Code No.

Diameter

Segment Width

Segment Height

CD-DSDB-01-01

14mm

2.5mm 10mm
CD-DSDB-01-02

16mm (5/8”)

2.5mm 10mm
CD-DSDB-01-03

18mm

2.5mm 10mm
CD-DSDB-01-04 3/4"(20mm) 2.5mm 10mm
CD-DSDB-01-05

7/8"(22mm)

2.5mm

10mm

CD-DSDB-01-06

1"(25mm)

2.5mm

10mm

CD-DSDB-01-07

1.18"(29mm)

2.5mm

10mm

CD-DSDB-01-08

1-1/4"(32mm)

2.5mm

10mm

CD-DSDB-01-09

1-3/8"(35mm)

2.5mm

10mm

CD-DSDB-01-10

1-1/2"(38mm)

3.0mm

10mm

CD-DSDB-01-11

1.63"(42mm)

3.0mm

10mm

CD-DSDB-01-12

1-3/4"(45mm)

3.0mm

10mm

CD-DSDB-01-13

1.88"(48mm)

3.0mm

10mm

CD-DSDB-01-14

2"(52mm)

3.0mm

10mm





The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
