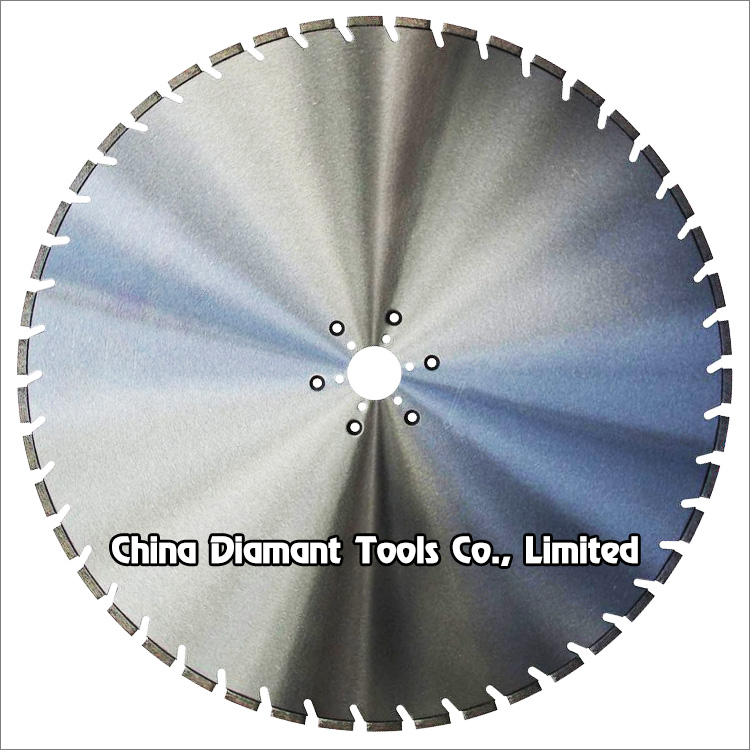

Diamond Saw Blades for Concrete Wall Floor Cutting - Diagonal Teeth



Laser or silver welded diamond saw blades with diagonal teeth and normal 40mm length flat segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.



Diameter: 450mm-1800mm.



Segments height: 10-15mm.



Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.



Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.



It can be used dry, but will give better performance and life used wet.



Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.







Code No.

Diameter

Segment Size

(L x W x H mm)

Segment No. Welding Method Bore Size Steel Core Thickness
CD-SBW-02-01

450mm(18")

40x4.6x10/12mm

30

Laser welded

25.4mm

30.5mm

35mm

50mm

60mm

80mm

or

As per demand

3.5mm

CD-SBW-02-02

500mm(20")

40x4.6x10/12mm

32
CD-SBW-02-03

600mm(24")

40x4.6x10/12mm

35
CD-SBW-02-04 625mm(25")

40x4.6x10/12mm

36
CD-SBW-02-05

650mm(26")

40x4.6x10/12mm

38
CD-SBW-02-06

700mm(28")

40x4.6x10/12mm

40
CD-SBW-02-07

750mm(30")

40x4.6x10/12mm

42
CD-SBW-02-08

800mm(32")

40x4.6x10/12mm

46
CD-SBW-02-09

900mm(36")

40x4.6x10/12mm

52
CD-SBW-02-10

1000mm(40")

40x4.6x10/12/15mm

58
CD-SBW-02-11

1200mm(48")

40x4.6x10/12/15mm

68
CD-SBW-02-12 1400mm(56") 40x4.6x10/12/15mm 86

Silver welded

(Wet use only)

CD-SBW-02-13 1500mm(60") 40x4.6x10/12/15mm 90
CD-SBW-02-14 1600mm(64") 40x4.6x10/12/15mm 92
CD-SBW-02-15 1800mm(72") 40x4.6x10/12/15mm 106





Different specifications of bores:





A

B

C

D





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.





Warm Prompt:

For your personal protection, to take good care of your eyes/ears/face/hands/body/etc., before you start working we recommend that you wear safety glasses, dust aspirators, welding gloves, safety shoes, and other appropriate equipment.
