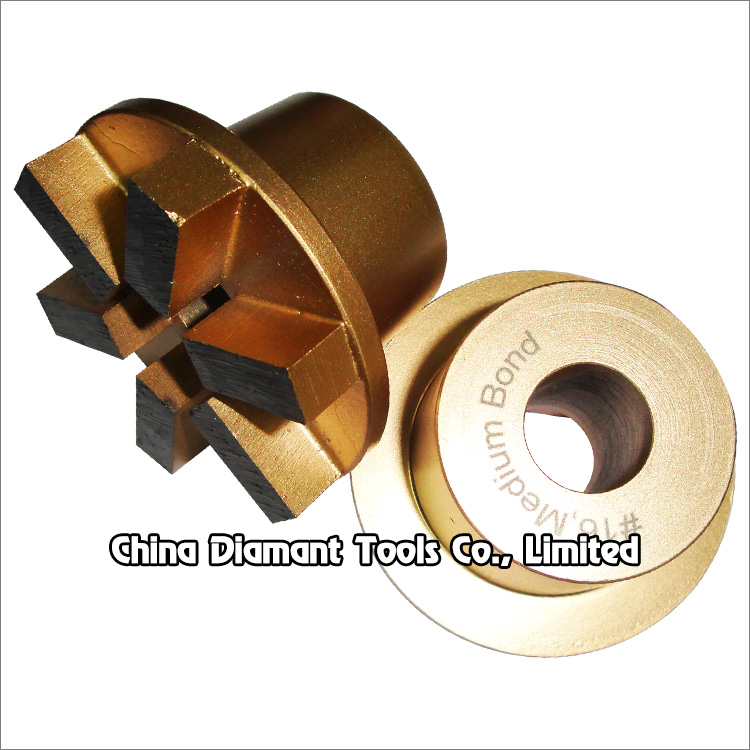

Diamond Grinding Plugs - Bar Segments



Diamond grinding plugs with 3-6pcs bar shape diamond segments, usually used on Prepmaster/Floorex/Terrcoo floor grinders for aggressive concrete cleaning, smoothing, and coating removal, the segment helps transition over joints and leave a smooth profiles, remove dry or wet, rough & uneven spots on concrete or terrazzo surfaces.

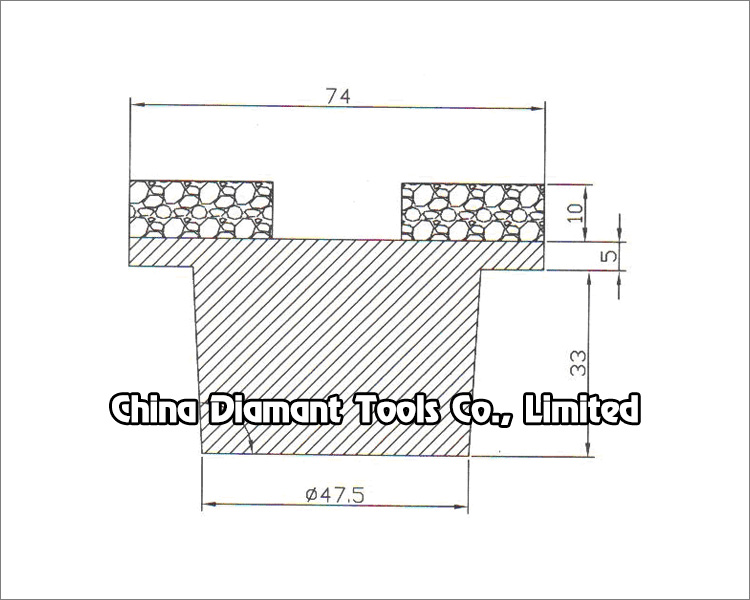

50mm plug with 74mm plate, with or without water hole, cone shape body, easy to install and remove.



Bond type: soft, medium, hard, available in a variety of grit sizes to suit your extreme application, ranges from #6 up to #300.


Fast grinding speed, high performance and long life.



3pcs Segments



5pcs Segments









Code No.

Diameter

Grit

Segment Size

Segment No.

CD-DP-01-06

74mm (3")

#6, #16, #30, #60, #80, #100, #120...

30x7.5x10mm

6pcs

CD-DP-01-05 74mm (3") #6, #16, #30, #60, #80, #100, #120... 30x7.5x10mm 5pcs

CD-DP-01-03

74mm (3")

#6, #16, #30, #60, #80, #100, #120...

30x7.5x10mm

3pcs





The above goods are made in China, the specifications & photos is for reference, other specification or different quality class products may be available as per demand.
