Grinding

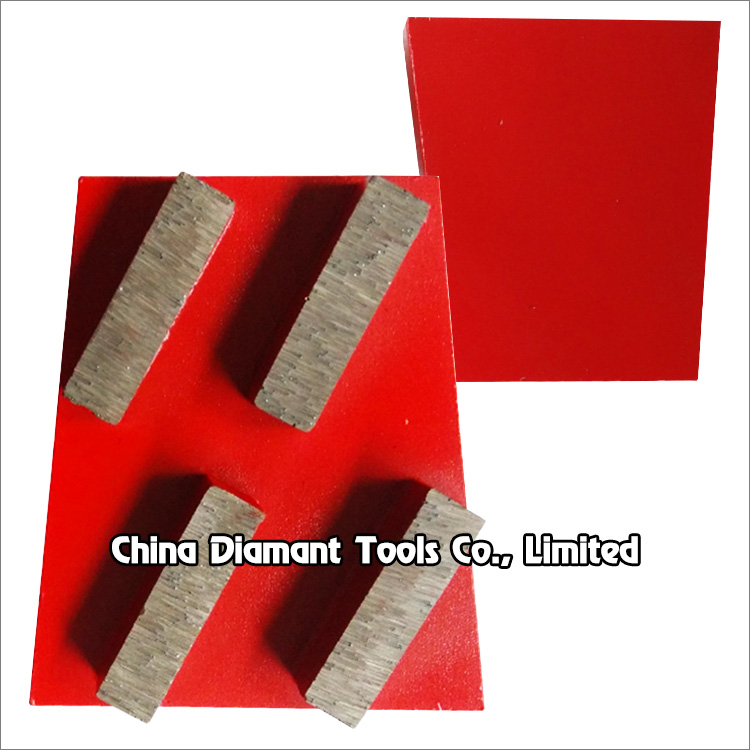

Diamond wedge grinding
block with 4pcs segments for rough leveling and grinding of
concrete/terrazzo/stone floor, such as underground parking lot, factory
floor, etc., to remove the attachment on its surface.
Metal bond diamond segment has high strength, excellent wear
resistance, and a low friction coefficient, it also has high
grinding efficiency and low grinding force generates less heat in
the grinding process.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
|
Code No. |
Grit |
Segment No. |
Segment Size |
Bond Type |
|
CD-DGT-O-02
|
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
4pcs |
40x10x10mm |
soft
medium
hard |
The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
