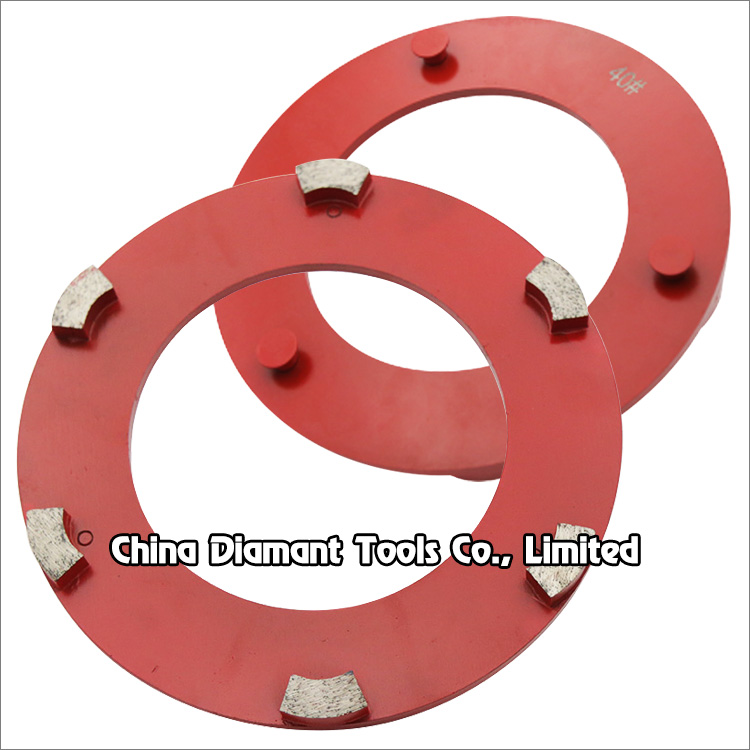

240mm Diamond Grinding Plate for Bimack/kLinDex Floor Grinders - Curved Segments



This 240mm diamond grinding plate with curved segments design fits to most of the single/double/three heads Bimack/kLinDex floor grinders in the market.



It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It can be applied to large-size concrete, terrazzo, stone floor grinding, it has 6-9pcs or more bar shape diamond segments and it is very high efficient for grinding deep on the floor surface.


Generous 10mm deep diamond segments for long life.



It can be used dry, but will give better performance and life used wet.



We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.



For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).



Bond type: soft, medium, hard.









Code No. Diameter Segment No. Segment Height Grit Bond Type

CD-DGD-03-02-6

240mm

6pcs

10mm

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

soft

medium

hard

CD-DGD-03-02-9 240mm

9pcs

10mm





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
