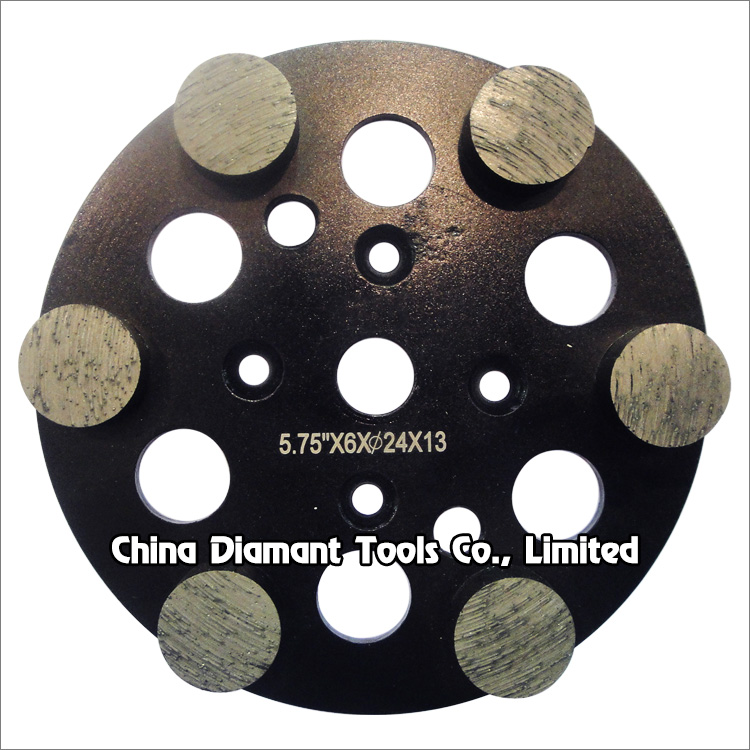

- Round Segments
It is designed for
removing hard epoxies and coatings, erasing concrete imperfections,
leveling uneven spots or joints and smoothing rough or patched
concrete surfaces. It has 6pcs round diamond segments and
it is very high efficient for grinding deep on the concrete surface.
It can be used dry, but
will give better performance and life used wet.
Cooling holes in the engineered core improve through-visibility of
material.
Generous 13mm deep diamond segments for long life.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
Code No. |
Diameter |
Segment No. |
Segment Size |
Grit |
Bond Type |
CD-DGD-02-02-150
|
6"(150mm) |
6pcs |
Ø24x13mm |
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
soft
medium
hard |
CD-DGD-02-02-180 |
7"(180mm) |
6pcs |
Ø24x13mm |
CD-DGD-02-02-200 |
8"(200mm) |
6pcs |
Ø24x13mm |
CD-DGD-02-02-250 |
10"(250mm) |
6pcs |
Ø24x13mm |
The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
