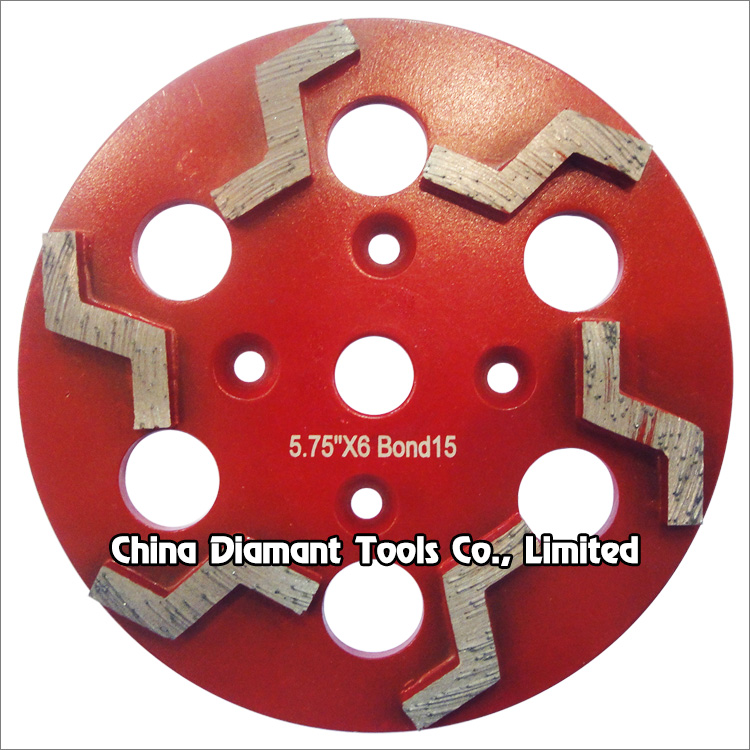

Diamond Grinding Plate - Z Shape Segments



It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 6pcs Z shape diamond segments and it is very high efficient for grinding deep on the concrete surface.



It can be used dry, but will give better performance and life used wet.


Cooling holes in the engineered core improve through-visibility of material.


Generous 10mm deep diamond segments for long life.



We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.



For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).



Bond type: soft, medium, hard.





Code No. Diameter Segment No. Segment Height Grit Bond Type

CD-DGD-02-01-150

6"(150mm)

6pcs

10mm

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

soft

medium

hard

CD-DGD-02-01-180 7"(180mm) 6pcs 10mm
CD-DGD-02-01-200 8"(200mm) 6pcs 10mm
CD-DGD-02-01-250 10"(250mm) 6pcs

10mm





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
