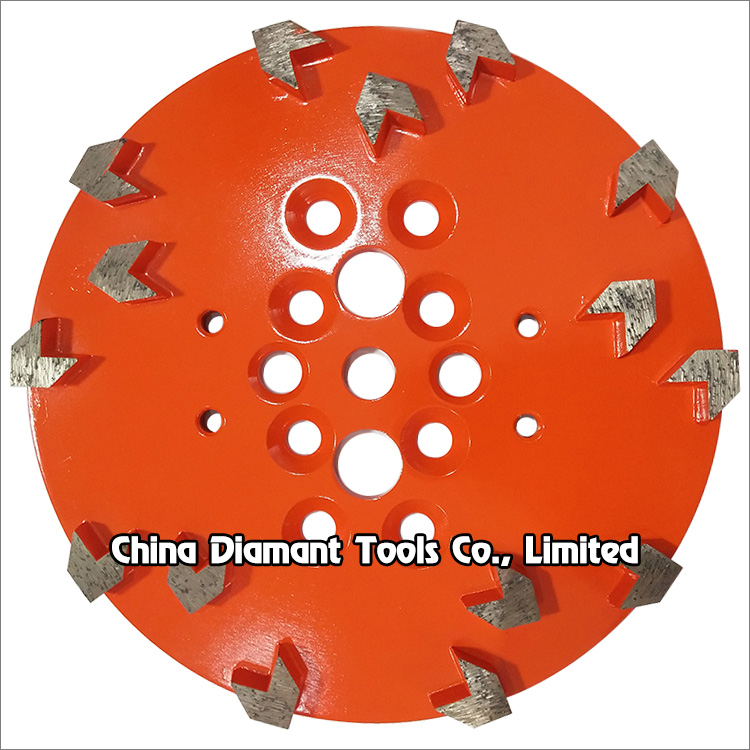

10"(250mm) Diamond Grinding Plate - Arrow Segments



This 250mm diamond grinding plate with multi-hole design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders.



It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 10-20pcs arrow shape diamond segments and it is very high efficient for grinding deep on the concrete surface.



It can be used dry, but will give better performance and life used wet.


Cooling holes in the engineered core improve through-visibility of material.


Generous 13mm deep diamond segments for long life.



We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.



For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).



Bond type: soft, medium, hard.





10pcs segments 15pcs segments 20pcs segments





Code No. Diameter Segment No. Segment Height Grit Bond Type

CD-DGD-02-10

10"(250mm)

10pcs

13mm

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

soft

medium

hard

CD-DGD-02-15 10"(250mm) 15pcs 13mm
CD-DGD-02-20 10"(250mm)

20pcs

13mm





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
