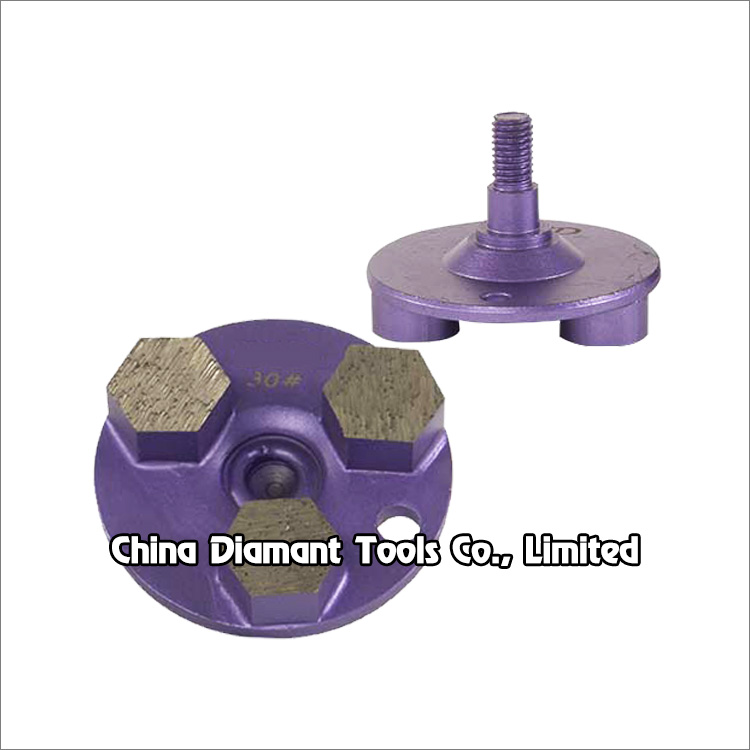

3"(80mm) Metal Bond
Diamond Grinding Disc - Hexagon Segments
This metal bond diamond
grinding discs with 3pcs hexagon segments and threaded handle is used
on hand use grinding machines for grinding abrasive materials such
as stone concrete brick, etc., or used on some floor grinders for leveling, coarse grinding and fine grinding
preparation or old floor renovation before polishing on various
concrete, terrazzo, stone floors.
It can be used dry, but
will give better performance and life used wet.
We provide you with different metal bonds to fit different
hardness of concrete, and a wide range of diamond grits can be
chosen.
For coarse grinding(#6-#40), medium grinding(#50-#120), fine
grinding(#150-#200).
Bond type: soft, medium, hard.
|
Code No. |
Diameter |
Segment No. |
Segment Height |
Grit |
Bond Type |
Shank
Size |
|
CD-DGD-07-02 |
3"(80mm) |
3pcs |
10mm |
#6, #16, #20, #25, #30,
#40,
#50, #60,
#80,
#100, #120,
#150,
#170,
#200 |
soft
medium
hard |
M8
M10
or
as per
demand |
The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
