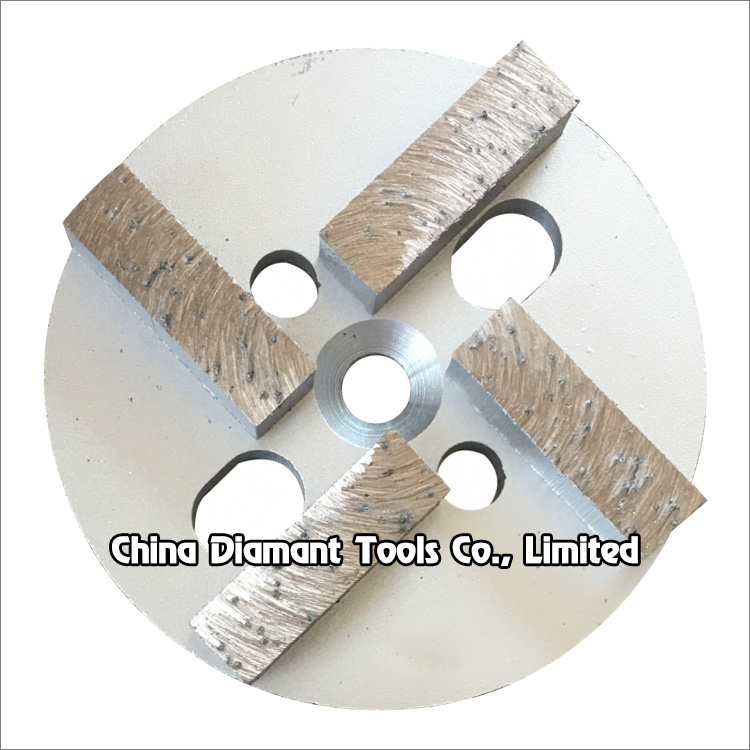

3" 4" Magnetic Diamond Disc for Floor Grinding - Bar Segments



The diamond grinding disc with bar shape segments is mainly used for leveling, coarse grinding and fine grinding preparation or old floor renovation before polishing on various concrete, terrazzo, stone floors.



Magnetic design of steel base, easy to change and stick on the plate tightly.



Metal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. This disc has 4pins and 4pcs bar shape segments with high diamond concentration for long life, and it is very high efficient for grinding deep on the concrete surface.



It can be used dry, but will give better performance and life used wet.



We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.



For coarse grinding(#6-#40), medium grinding(#50-#120), fine grinding(#150-#200).



Bond type: soft, medium, hard.





Code No. Diameter Segment No. Segment Size Grit Bond Type

CD-DGD-05-01-80

3"(80mm)

4pcs

24x10x10mm

#6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170, #200

soft

medium

hard

CD-DGD-05-01-100

4"(100mm)

4pcs

40x10x10mm





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
