PCD Grinding Cup Wheels - Single Row



PCD cup wheel is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.



Manufactured from the highest quality polycrystalline diamonds. This tools scraping action eliminates gumming up of segments and maximizes production.



Diameter: 4"(105mm)-10"(250mm).



Dry or wet use.



May be used on angle grinders or floor grinders.

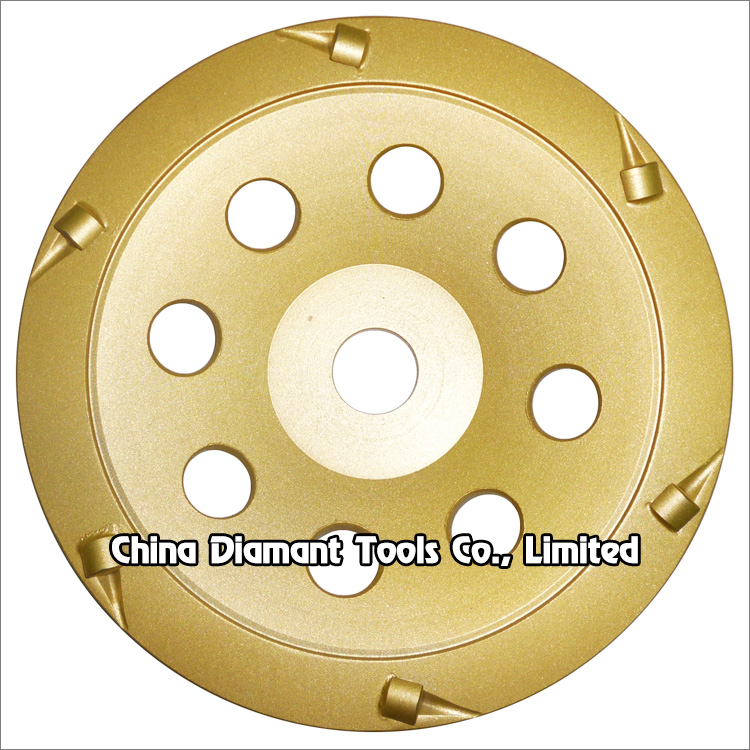

In the above photo the PCD size is 1/4 Round.







Code No.

Diameter

Back Hole PCD Size PCD No.
CD-GCW-PCD02-01

105mm(4")

5/8"-11

M14

20mm

22.23mm

1/4 Round

or

1/3 Round

or

1/2 Round

4
CD-GCW-PCD02-02

115mm(4.5")

4
CD-GCW-PCD02-03

125mm(5")

5
CD-GCW-PCD02-04

150mm(6")

6

CD-GCW-PCD02-05

180mm(7")

6

CD-GCW-PCD02-06

200mm(8")

8

CD-GCW-PCD02-07

250mm(10")

10





The goods are made in China, the above specifications & photos is for reference, other specification or different quality class products may be available as per demand.
